webpack/examples/scope-hoisting

This example demonstrates Scope Hoisting in combination with Code Splitting.

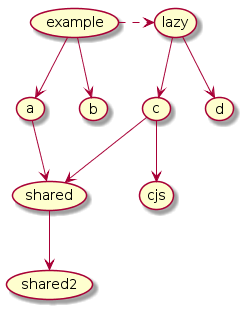

This is the dependency graph for the example: (solid lines express sync imports, dashed lines async imports)

All modules except cjs are EcmaScript modules. cjs is a CommonJs module.

The interesting thing here is that putting all modules in single scope won't work, because of multiple reasons:

• Modules lazy, c, d and cjs need to be in a separate chunk
• Module shared is accessed by two chunks (different scopes)
• Module cjs is a CommonJs module

webpack therefore uses a approach called "Partial Scope Hoisting" or "Module concatenation", which chooses the largest possible subsets of ES modules which can be scope hoisted and combines them with the default webpack primitives.

While module concatenation identifiers in modules are renamed to avoid conflicts and internal imports are simplified. External imports and exports from the root module use the existing ESM constructs.

example.js

import { a, x, y } from "a";
import * as b from "b";

import("./lazy").then(function(lazy) {
	console.log(a, b.a(), x, y, lazy.c, lazy.d.a, lazy.x, lazy.y);
});

lazy.js

export * from "c";
import * as d from "d";
export { d };

a.js

// module a
export var a = "a";
export * from "shared";

b.js

// module b
export function a() {
	return "b";
};

c.js

// module c
import { c as e } from "cjs";

export var c = String.fromCharCode(e.charCodeAt(0) - 2);

export { x, y } from "shared";

d.js

// module d
export var a = "d";

cjs.js

// module cjs (commonjs)
exports.c = "e";

shared.js

// shared module
export var x = "x";
export * from "shared2";

shared2.js

// shared2 module
export var y = "y";

webpack.config.js

module.exports = {
	// mode: "development" || "production",
	optimization: {
		usedExports: true,
		concatenateModules: true,
		chunkIds: "deterministic" // To keep filename consistent between different modes (for example building only)
	}
};

dist/output.js

/******/ (function(modules) { /* webpackBootstrap */ })

/******/ (function(modules, runtime) { // webpackBootstrap
/******/ 	"use strict";
/******/ 	// The module cache
/******/ 	var installedModules = {};
/******/
/******/ 	// The require function
/******/ 	function __webpack_require__(moduleId) {
/******/
/******/ 		// Check if module is in cache
/******/ 		if(installedModules[moduleId]) {
/******/ 			return installedModules[moduleId].exports;
/******/ 		}
/******/ 		// Create a new module (and put it into the cache)
/******/ 		var module = installedModules[moduleId] = {
/******/ 			i: moduleId,
/******/ 			l: false,
/******/ 			exports: {}
/******/ 		};
/******/
/******/ 		// Execute the module function
/******/ 		modules[moduleId].call(module.exports, module, module.exports, __webpack_require__);
/******/
/******/ 		// Flag the module as loaded
/******/ 		module.l = true;
/******/
/******/ 		// Return the exports of the module
/******/ 		return module.exports;
/******/ 	}
/******/
/******/
/******/ 	// expose the modules object (__webpack_modules__)
/******/ 	__webpack_require__.m = modules;
/******/
/******/ 	// initialize runtime
/******/ 	runtime(__webpack_require__);
/******/
/******/ 	// Load entry module and return exports
/******/ 	return __webpack_require__(0);
/******/ })
/************************************************************************/

/******/ ([
/* 0 */
/*!********************************!*\
  !*** ./example.js + 2 modules ***!
  \********************************/
/*! no exports provided */
/*! runtime requirements: __webpack_exports__, __webpack_require__.r, __webpack_require__.d, __webpack_require__.n, __webpack_require__.e, __webpack_require__ */
/*! all exports used */
/*! ModuleConcatenation bailout: Cannot concat with ./node_modules/shared.js (<- Module is referenced from different chunks by these modules: ./lazy.js + 2 modules) */
/***/ (function(__unusedmodule, __webpack_exports__, __webpack_require__) {

"use strict";
__webpack_require__.r(__webpack_exports__);

// EXTERNAL MODULE: ./node_modules/shared.js + 1 modules
var shared = __webpack_require__(1);

// CONCATENATED MODULE: ./node_modules/a.js
// module a
var a = "a";


// CONCATENATED MODULE: ./node_modules/b.js
// module b
function b_a() {
	return "b";
};

// CONCATENATED MODULE: ./example.js



__webpack_require__.e(/*! import() */ 78).then(__webpack_require__.bind(null, /*! ./lazy */ 2)).then(function(lazy) {
	console.log(a, b_a(), shared["a" /* x */], shared["b" /* y */], lazy.c, lazy.d.a, lazy.x, lazy.y);
});


/***/ }),
/* 1 */
/*!********************************************!*\
  !*** ./node_modules/shared.js + 1 modules ***!
  \********************************************/
/*! exports provided: x, y */
/*! runtime requirements: __webpack_exports__, __webpack_require__.r, __webpack_require__.d, __webpack_require__ */
/*! exports used: x, y */
/***/ (function(__unusedmodule, __webpack_exports__, __webpack_require__) {

"use strict";

// CONCATENATED MODULE: ./node_modules/shared2.js
// shared2 module
var y = "y";

// CONCATENATED MODULE: ./node_modules/shared.js
/* harmony export (binding) */ __webpack_require__.d(__webpack_exports__, "a", function() { return x; });
/* concated harmony reexport */ __webpack_require__.d(__webpack_exports__, "b", function() { return y; });
// shared module
var x = "x";



/***/ })
/******/ ],

function(__webpack_require__) { /* webpackRuntimeModules */ });

/******/ function(__webpack_require__) { // webpackRuntimeModules
/******/ 	"use strict";
/******/
/******/ 	/* webpack/runtime/make namespace object */
/******/ 	!function() {
/******/ 		// define __esModule on exports
/******/ 		__webpack_require__.r = function(exports) {
/******/ 			if(typeof Symbol !== 'undefined' && Symbol.toStringTag) {
/******/ 				Object.defineProperty(exports, Symbol.toStringTag, { value: 'Module' });
/******/ 			}
/******/ 			Object.defineProperty(exports, '__esModule', { value: true });
/******/ 		};
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/define property getter */
/******/ 	!function() {
/******/ 		// define getter function for harmony exports
/******/ 		var hasOwnProperty = Object.prototype.hasOwnProperty;
/******/ 		__webpack_require__.d = function(exports, name, getter) {
/******/ 			if(!hasOwnProperty.call(exports, name)) {
/******/ 				Object.defineProperty(exports, name, { enumerable: true, get: getter });
/******/ 			}
/******/ 		};
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/compat get default export */
/******/ 	!function() {
/******/ 		// getDefaultExport function for compatibility with non-harmony modules
/******/ 		__webpack_require__.n = function(module) {
/******/ 			var getter = module && module.__esModule ?
/******/ 				function getDefault() { return module['default']; } :
/******/ 				function getModuleExports() { return module; };
/******/ 			__webpack_require__.d(getter, 'a', getter);
/******/ 			return getter;
/******/ 		};
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/ensure chunk */
/******/ 	!function() {
/******/ 		__webpack_require__.f = {};
/******/ 		// This file contains only the entry chunk.
/******/ 		// The chunk loading function for additional chunks
/******/ 		__webpack_require__.e = function requireEnsure(chunkId) {
/******/ 			return Promise.all(Object.keys(__webpack_require__.f).reduce(function(promises, key) { __webpack_require__.f[key](chunkId, promises); return promises; }, []));
/******/ 		};
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/create fake namespace object */
/******/ 	!function() {
/******/ 		// create a fake namespace object
/******/ 		// mode & 1: value is a module id, require it
/******/ 		// mode & 2: merge all properties of value into the ns
/******/ 		// mode & 4: return value when already ns object
/******/ 		// mode & 8|1: behave like require
/******/ 		__webpack_require__.t = function(value, mode) {
/******/ 			if(mode & 1) value = this(value);
/******/ 			if(mode & 8) return value;
/******/ 			if((mode & 4) && typeof value === 'object' && value && value.__esModule) return value;
/******/ 			var ns = Object.create(null);
/******/ 			__webpack_require__.r(ns);
/******/ 			Object.defineProperty(ns, 'default', { enumerable: true, value: value });
/******/ 			if(mode & 2 && typeof value != 'string') for(var key in value) __webpack_require__.d(ns, key, function(key) { return value[key]; }.bind(null, key));
/******/ 			return ns;
/******/ 		};
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/publicPath */
/******/ 	!function() {
/******/ 		__webpack_require__.p = "dist/";
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/get javascript chunk filename */
/******/ 	!function() {
/******/ 		__webpack_require__.u = function(chunkId) {
/******/ 			return "" + chunkId + ".output.js";
/******/ 		};
/******/ 	}();
/******/
/******/ 	/* webpack/runtime/jsonp chunk loading */
/******/ 	!function() {
/******/
/******/
/******/ 		// object to store loaded and loading chunks
/******/ 		// undefined = chunk not loaded, null = chunk preloaded/prefetched
/******/ 		// Promise = chunk loading, 0 = chunk loaded
/******/ 		var installedChunks = {
/******/ 			404: 0
/******/ 		};
/******/
/******/
/******/
/******/ 		__webpack_require__.f.j = function(chunkId, promises) {
/******/ 			// JSONP chunk loading for javascript
/******/ 			var installedChunkData = installedChunks[chunkId];
/******/ 			if(installedChunkData !== 0) { // 0 means "already installed".
/******/
/******/ 				// a Promise means "currently loading".
/******/ 				if(installedChunkData) {
/******/ 					promises.push(installedChunkData[2]);
/******/ 				} else {
/******/ 					// setup Promise in chunk cache
/******/ 					var promise = new Promise(function(resolve, reject) {
/******/ 						installedChunkData = installedChunks[chunkId] = [resolve, reject];
/******/ 					});
/******/ 					promises.push(installedChunkData[2] = promise);
/******/
/******/ 					// start chunk loading
/******/ 					var url = __webpack_require__.p + __webpack_require__.u(chunkId);
/******/ 					var loadingEnded = function() { if(installedChunks[chunkId]) return installedChunks[chunkId][1]; if(installedChunks[chunkId] !== 0) installedChunks[chunkId] = undefined; };
/******/ 					var script = document.createElement('script');
/******/ 					var onScriptComplete;
/******/
/******/ 					script.charset = 'utf-8';
/******/ 					script.timeout = 120;
/******/ 					if (__webpack_require__.nc) {
/******/ 						script.setAttribute("nonce", __webpack_require__.nc);
/******/ 					}
/******/ 					script.src = url;
/******/
/******/ 					onScriptComplete = function (event) {
/******/ 						// avoid mem leaks in IE.
/******/ 						script.onerror = script.onload = null;
/******/ 						clearTimeout(timeout);
/******/ 						var reportError = loadingEnded();
/******/ 						if(reportError) {
/******/ 							var errorType = event && (event.type === 'load' ? 'missing' : event.type);
/******/ 							var realSrc = event && event.target && event.target.src;
/******/ 							var error = new Error('Loading chunk ' + chunkId + ' failed.\n(' + errorType + ': ' + realSrc + ')');
/******/ 							error.type = errorType;
/******/ 							error.request = realSrc;
/******/ 							reportError(error);
/******/ 						}
/******/ 					};
/******/ 					var timeout = setTimeout(function(){
/******/ 						onScriptComplete({ type: 'timeout', target: script });
/******/ 					}, 120000);
/******/ 					script.onerror = script.onload = onScriptComplete;
/******/ 					document.head.appendChild(script);
/******/
/******/ 					// no HMR
/******/ 				}
/******/ 			}
/******/
/******/ 			// no chunk preloading needed
/******/ 		};
/******/
/******/ 		// no prefetching
/******/
/******/ 		// no HMR
/******/
/******/ 		// no HMR manifest
/******/
/******/ 		// no deferred startup
/******/
/******/ 		// install a JSONP callback for chunk loading
/******/ 		function webpackJsonpCallback(data) {
/******/ 			var chunkIds = data[0];
/******/ 			var moreModules = data[1];
/******/
/******/ 			var runtime = data[3];
/******/
/******/ 			// add "moreModules" to the modules object,
/******/ 			// then flag all "chunkIds" as loaded and fire callback
/******/ 			var moduleId, chunkId, i = 0, resolves = [];
/******/ 			for(;i < chunkIds.length; i++) {
/******/ 				chunkId = chunkIds[i];
/******/ 				if(installedChunks[chunkId]) {
/******/ 					resolves.push(installedChunks[chunkId][0]);
/******/ 				}
/******/ 				installedChunks[chunkId] = 0;
/******/ 			}
/******/ 			for(moduleId in moreModules) {
/******/ 				if(Object.prototype.hasOwnProperty.call(moreModules, moduleId)) {
/******/ 					__webpack_require__.m[moduleId] = moreModules[moduleId];
/******/ 				}
/******/ 			}
/******/ 			if(runtime) runtime(__webpack_require__);
/******/ 			if(parentJsonpFunction) parentJsonpFunction(data);
/******/
/******/ 			while(resolves.length) {
/******/ 				resolves.shift()();
/******/ 			}
/******/
/******/ 		};
/******/
/******/ 		var jsonpArray = window["webpackJsonp"] = window["webpackJsonp"] || [];
/******/ 		var oldJsonpFunction = jsonpArray.push.bind(jsonpArray);
/******/ 		jsonpArray.push = webpackJsonpCallback;
/******/
/******/ 		var parentJsonpFunction = oldJsonpFunction;
/******/ 	}();
/******/
/******/ }
);

dist/78.output.js

(window["webpackJsonp"] = window["webpackJsonp"] || []).push([[78],[
/* 0 */,
/* 1 */,
/* 2 */
/*!*****************************!*\
  !*** ./lazy.js + 2 modules ***!
  \*****************************/
/*! exports provided: d, c, x, y */
/*! runtime requirements: __webpack_exports__, __webpack_require__.r, __webpack_require__.d, __webpack_require__.t, __webpack_require__.n, __webpack_require__ */
/*! all exports used */
/*! ModuleConcatenation bailout: Cannot concat with ./node_modules/cjs.js (<- Module is not an ECMAScript module) */
/*! ModuleConcatenation bailout: Cannot concat with ./node_modules/shared.js (<- Module is referenced from different chunks by these modules: ./lazy.js + 2 modules) */
/***/ (function(__unusedmodule, __webpack_exports__, __webpack_require__) {

"use strict";
__webpack_require__.r(__webpack_exports__);
var d_namespaceObject = {};
__webpack_require__.r(d_namespaceObject);
__webpack_require__.d(d_namespaceObject, "a", function() { return a; });

// EXTERNAL MODULE: ./node_modules/cjs.js
var cjs = __webpack_require__(3);

// EXTERNAL MODULE: ./node_modules/shared.js + 1 modules
var shared = __webpack_require__(1);

// CONCATENATED MODULE: ./node_modules/c.js
// module c


var c = String.fromCharCode(cjs["c"].charCodeAt(0) - 2);



// CONCATENATED MODULE: ./node_modules/d.js
// module d
var a = "d";

// CONCATENATED MODULE: ./lazy.js
/* concated harmony reexport */ __webpack_require__.d(__webpack_exports__, "c", function() { return c; });
/* concated harmony reexport */ __webpack_require__.d(__webpack_exports__, "x", function() { return shared["a" /* x */]; });
/* concated harmony reexport */ __webpack_require__.d(__webpack_exports__, "y", function() { return shared["b" /* y */]; });
/* concated harmony reexport */ __webpack_require__.d(__webpack_exports__, "d", function() { return d_namespaceObject; });





/***/ }),
/* 3 */
/*!*****************************!*\
  !*** ./node_modules/cjs.js ***!
  \*****************************/
/*! no static exports found */
/*! runtime requirements: __webpack_exports__ */
/*! exports used: c */
/*! ModuleConcatenation bailout: Module is not an ECMAScript module */
/***/ (function(__unusedmodule, exports) {

// module cjs (commonjs)
exports.c = "e";


/***/ })
]]);

Minimized

(window.webpackJsonp=window.webpackJsonp||[]).push([[78],{719:function(n,r){r.c="e"},78:function(n,r,t){"use strict";t.r(r);var c={};t.r(c),t.d(c,"a",function(){return e});var o=t(719),u=t(852),d=String.fromCharCode(o.c.charCodeAt(0)-2),e="d";t.d(r,"c",function(){return d}),t.d(r,"x",function(){return u.a}),t.d(r,"y",function(){return u.b}),t.d(r,"d",function(){return c})}}]);

Info

Unoptimized

Hash: 0a1b2c3d4e5f6a7b8c9d
Version: webpack 5.0.0-next
       Asset      Size  Chunks             Chunk Names
78.output.js  2.21 KiB    {78}  [emitted]
   output.js    11 KiB   {404}  [emitted]  main
Entrypoint main = output.js
chunk {78} 78.output.js 273 bytes <{404}> [rendered]
    > ./lazy ./example.js 4:0-16
 [2] ./lazy.js + 2 modules 231 bytes {78} [built]
     [exports: d, c, x, y]
     import() ./lazy [0] ./example.js + 2 modules 4:0-16
 [3] ./node_modules/cjs.js 42 bytes {78} [built]
     [only some exports used: c]
     harmony side effect evaluation cjs [2] ./lazy.js + 2 modules 2:0-29
     harmony import specifier cjs [2] ./lazy.js + 2 modules 4:35-36
chunk {404} output.js (main) 372 bytes (javascript) 5.12 KiB (runtime) >{78}< [entry] [rendered]
    > .\example.js main
 [0] ./example.js + 2 modules 272 bytes {404} [built]
     [no exports]
     entry .\example.js main
 [1] ./node_modules/shared.js + 1 modules 100 bytes {404} [built]
     [exports: x, y]
     [all exports used]
     harmony side effect evaluation shared [0] ./example.js + 2 modules 3:0-23
     harmony export imported specifier shared [0] ./example.js + 2 modules 3:0-23
     harmony side effect evaluation shared [2] ./lazy.js + 2 modules 6:0-30
     harmony export imported specifier shared [2] ./lazy.js + 2 modules 6:0-30
     harmony export imported specifier shared [2] ./lazy.js + 2 modules 6:0-30
     + 8 hidden chunk modules

Production mode

Hash: 0a1b2c3d4e5f6a7b8c9d
Version: webpack 5.0.0-next
       Asset       Size  Chunks             Chunk Names
78.output.js  379 bytes    {78}  [emitted]
   output.js   2.25 KiB   {404}  [emitted]  main
Entrypoint main = output.js
chunk {78} 78.output.js 273 bytes <{404}> [rendered]
    > ./lazy ./example.js 4:0-16
  [78] ./lazy.js + 2 modules 231 bytes {78} [built]
       [exports: d, c, x, y]
       import() ./lazy [258] ./example.js + 2 modules 4:0-16
 [719] ./node_modules/cjs.js 42 bytes {78} [built]
       [only some exports used: c]
       harmony side effect evaluation cjs [78] ./lazy.js + 2 modules 2:0-29
       harmony import specifier cjs [78] ./lazy.js + 2 modules 4:35-36
chunk {404} output.js (main) 372 bytes (javascript) 5.12 KiB (runtime) >{78}< [entry] [rendered]
    > .\example.js main
 [258] ./example.js + 2 modules 272 bytes {404} [built]
       [no exports]
       entry .\example.js main
 [852] ./node_modules/shared.js + 1 modules 100 bytes {404} [built]
       [exports: x, y]
       [all exports used]
       harmony side effect evaluation shared [78] ./lazy.js + 2 modules 6:0-30
       harmony export imported specifier shared [78] ./lazy.js + 2 modules 6:0-30
       harmony export imported specifier shared [78] ./lazy.js + 2 modules 6:0-30
       harmony side effect evaluation shared [258] ./example.js + 2 modules 3:0-23
       harmony export imported specifier shared [258] ./example.js + 2 modules 3:0-23
     + 8 hidden chunk modules
