Adapting Qt5-Based Open Source Application -- qBittorrent to Support Automated Linyaps Application Build Projects

Continuing from the previous chapter, we will explore how to adapt the linglong.yaml to support automated build versions. Since we have already determined the build rules that can successfully complete the compilation and build tasks in the previous section, this section mainly discusses how to use the git function to complete the following automated operations:

Automatically pull open source project git repository resources
Automatically apply custom patch content

Modifying `linglong.yaml`

In the previous section, we obtained a linglong.yaml that can successfully compile local source code. Since it's the same application project, we can directly modify it based on the existing configuration.

For linglong.yaml, the two core parts are mainly the sources and build modules. This time we will explain these two parts separately.

`sources` Module

According to the [Linyaps Application Build Project linglong.yaml Specification], when the build project's source files are git repositories (i.e., pulling source code repositories through git clone), the source file type kind of sources should be set to git and fill in the relevant information of the repository.

According to the [Linyaps Application Build Project linglong.yaml Specification] Git Pull Source Code Compilation Mode specification, we need to master the following information about the source code repository:

url, which is the address used for git clone, can use mirror addresses like ordinary git clone
version, which is the specific version number of the repository that needs to be fetched, generally the Tags label
The repository commit number that needs to be applied. Fill in the value corresponding to the commit here, which will apply all changes up to this commit in the repository. This field has higher priority than version. Please do not fill in any commit after the merge time of version

Combined with the compilation notes in the second section, we collected information about the qBittorrent.git and libtorrent.git repositories. To reduce build progress blocking caused by network issues, I chose to use mirror addresses here:

sources:
  - kind: git
    url: https://githubfast.com/qbittorrent/qBittorrent.git
    version: release-4.6.7
    commit: 839bc696d066aca34ebd994ee1673c4b2d5afd7b

  - kind: git
    url: https://githubfast.com/arvidn/libtorrent.git
    version: v2.0.9
    commit: 4b4003d0fdc09a257a0841ad965b22533ed87a0d

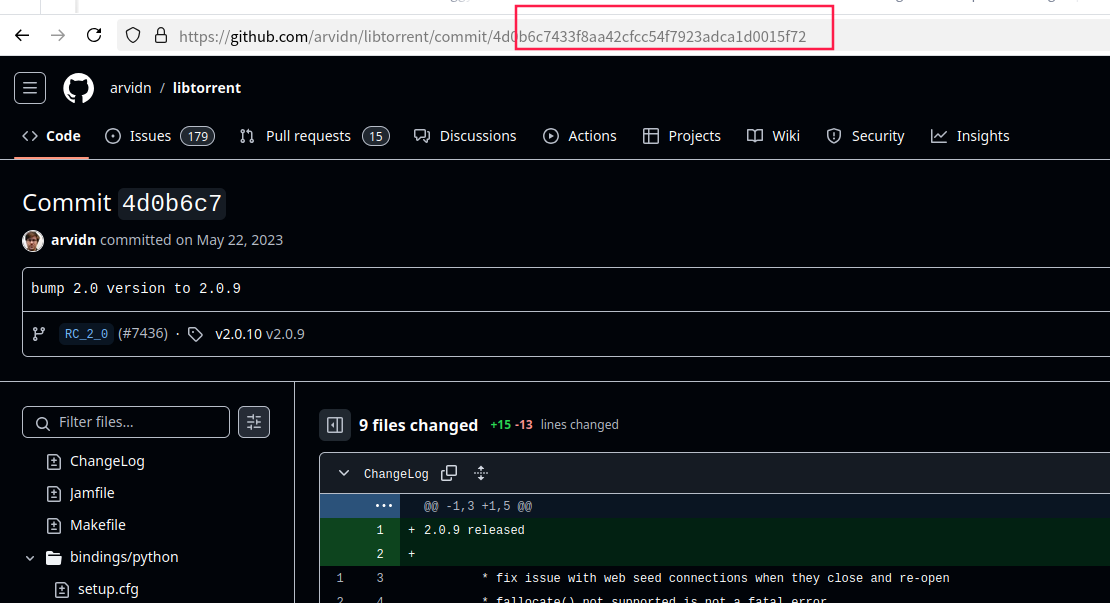

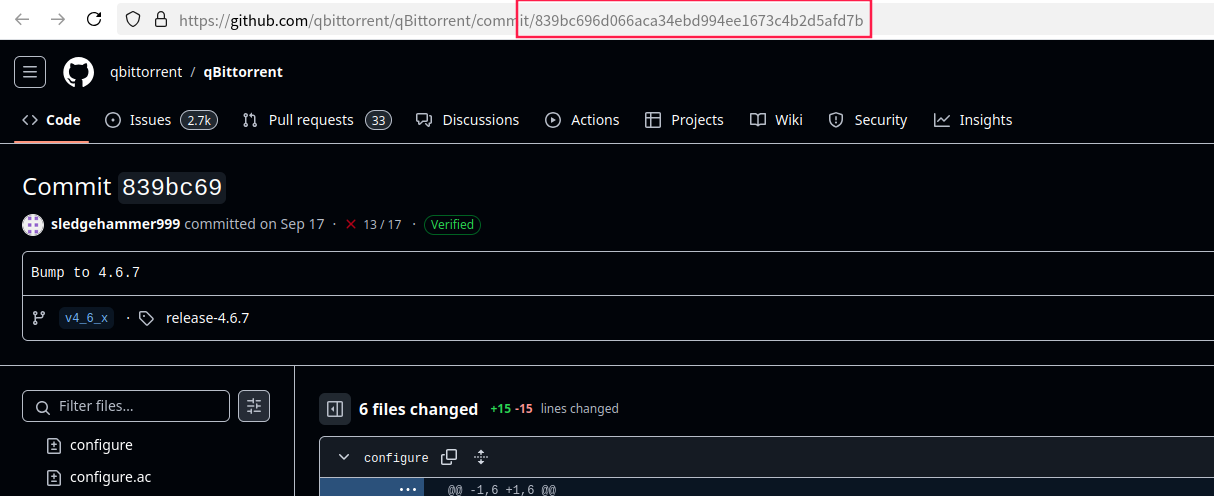

As can be seen from the figures, the filled commit values all match the commits when the corresponding tags were generated.

`build` Module

After completing the source file information settings, we start modifying the build rules. Considering that we have obtained executable build rules in the previous lesson, we only need to modify the source code path according to the relevant specifications in the [Linyaps Application Build Project linglong.yaml Specification] Git Pull Source Code Compilation Mode.

After completing the modifications, we will get the following build rules:

build: |
  mkdir -p ${PREFIX}/bin/ ${PREFIX}/share/
  ##Build 3rd libs
  mkdir /project/linglong/sources/libtorrent.git/build
  cd /project/linglong/sources/libtorrent.git/build
  cmake -DCMAKE_BUILD_TYPE=Release \
        -DCMAKE_INSTALL_PREFIX=$PREFIX ..
  make -j$(nproc)
  make install

  ##Build main
  mkdir /project/linglong/sources/qBittorrent.git/build
  cd /project/linglong/sources/qBittorrent.git/build
  cmake -DCMAKE_BUILD_TYPE=Release \
        -DCMAKE_INSTALL_PREFIX=$PREFIX ..
  make -j$(nproc)
  make install

  ##Extract common res
  cp -rf /project/template_app/* ${PREFIX}/share/

Custom Patch Application

In this case, we also introduce a new scenario: after pulling open source project repository resources of a specific version number, we need to modify the source code to achieve patch effects for fixing vulnerabilities and bugs.

For this, we need to learn new knowledge: git patch related content. The git program has a built-in patch management system that needs to conveniently use this function to revise the source code. Generally, there are the following steps:

Pull the open source project repository resources to the local directory through git clone
Manually modify based on the pulled resources. At this time, you can compare the differences and changes with the initial state through the git diff function. This forms the content of the patch. The specific patch division can vary according to the maintainer
After generating the patch document, pull the same open source project repository again. At this time, apply this patch through git apply to achieve automatic revision based on change records, and also facilitate recording source code maintenance records

For example, after pulling the qBittorrent--4.6.7 repository in this case, I need to add a merge related to security vulnerabilities: https://github.com/qbittorrent/qBittorrent/pull/21364

It should be noted that this submission is based on the qBittorrent--5.x version, which means that if I want to fix this vulnerability on qBittorrent--4.6.7, I need to manually modify the source code. Considering that the main version number of this application maintained in the short term will not be iterated to 5.x, and with the possibility of other security vulnerabilities occurring and reducing the labor cost of repeatedly modifying the source code, I adopted the method of adding patches to assist me in modifying the source code.

The following shows my process of obtaining & applying patches:

First, I pulled the qBittorrent--4.6.7 repository in sources to the local directory through git clone
Enter the pulled directory and check whether the current directory is a valid git directory through the git program:

❯ git remote -v
origin  https://ghp.ci/https://github.com/qbittorrent/qBittorrent.git (fetch)
origin  https://ghp.ci/https://github.com/qbittorrent/qBittorrent.git (push)

As can be seen, after executing the command, information about the remote repository can be returned, indicating that this directory meets the requirements.

Then, manually modify the source code according to the file changes when the above security vulnerability was submitted. * Here, the maintainer needs to judge which specific submissions need to be merged based on experience
After the modification is completed, return to the root directory of the source code and execute git diff to view the existing difference comparison:
After confirmation, save this difference locally to form a patch file

ziggy@linyaps23:/media/szbt/Data/ll-build/QT/qBittorrent-local$ git diff > ./

After obtaining the patch file, we will add the content of the applied patch to the existing build build rules:

build: |
  mkdir -p ${PREFIX}/bin/ ${PREFIX}/share/
  ##Apply patch for qBittorrent
  cd /project/linglong/sources/qBittorrent.git
  git apply -v /project/patches/linyaps-qBittorrent-4.6.7-szbt2.patch

  ##Build 3rd libs
  mkdir /project/linglong/sources/libtorrent.git/build
  cd /project/linglong/sources/libtorrent.git/build
  cmake -DCMAKE_BUILD_TYPE=Release \
        -DCMAKE_INSTALL_PREFIX=$PREFIX ..
  make -j$(nproc)
  make install

  ##Build main
  mkdir /project/linglong/sources/qBittorrent.git/build
  cd /project/linglong/sources/qBittorrent.git/build
  cmake -DCMAKE_BUILD_TYPE=Release \
        -DCMAKE_INSTALL_PREFIX=$PREFIX ..
  make -j$(nproc)
  make install

  ##Extract common res
  cp -rf /project/template_app/* ${PREFIX}/share/

At this point, we can return to the build directory and start the build test. Execute:

ziggy@linyaps23:/media/szbt/Data/ll-build/QT/qBittorrent-local$ ll-builder build -v

This build ended quickly and successfully. We execute the following command to export the container as a Linyaps application installation package binary.layer:

ziggy@linyaps23:/media/szbt/Data/ll-build/QT/qBittorrent-local$ ll-builder export --layer

Local Build Result Testing

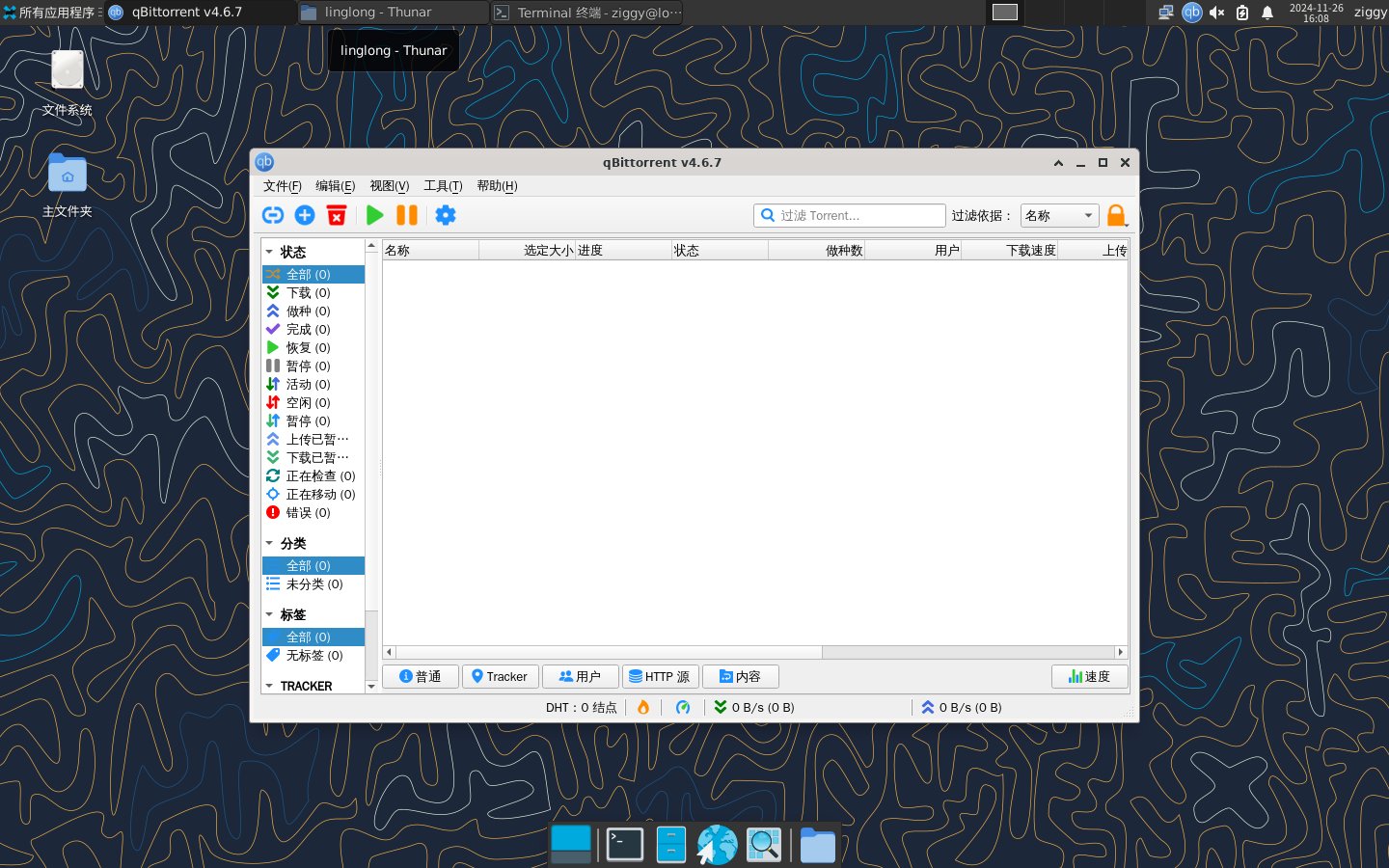

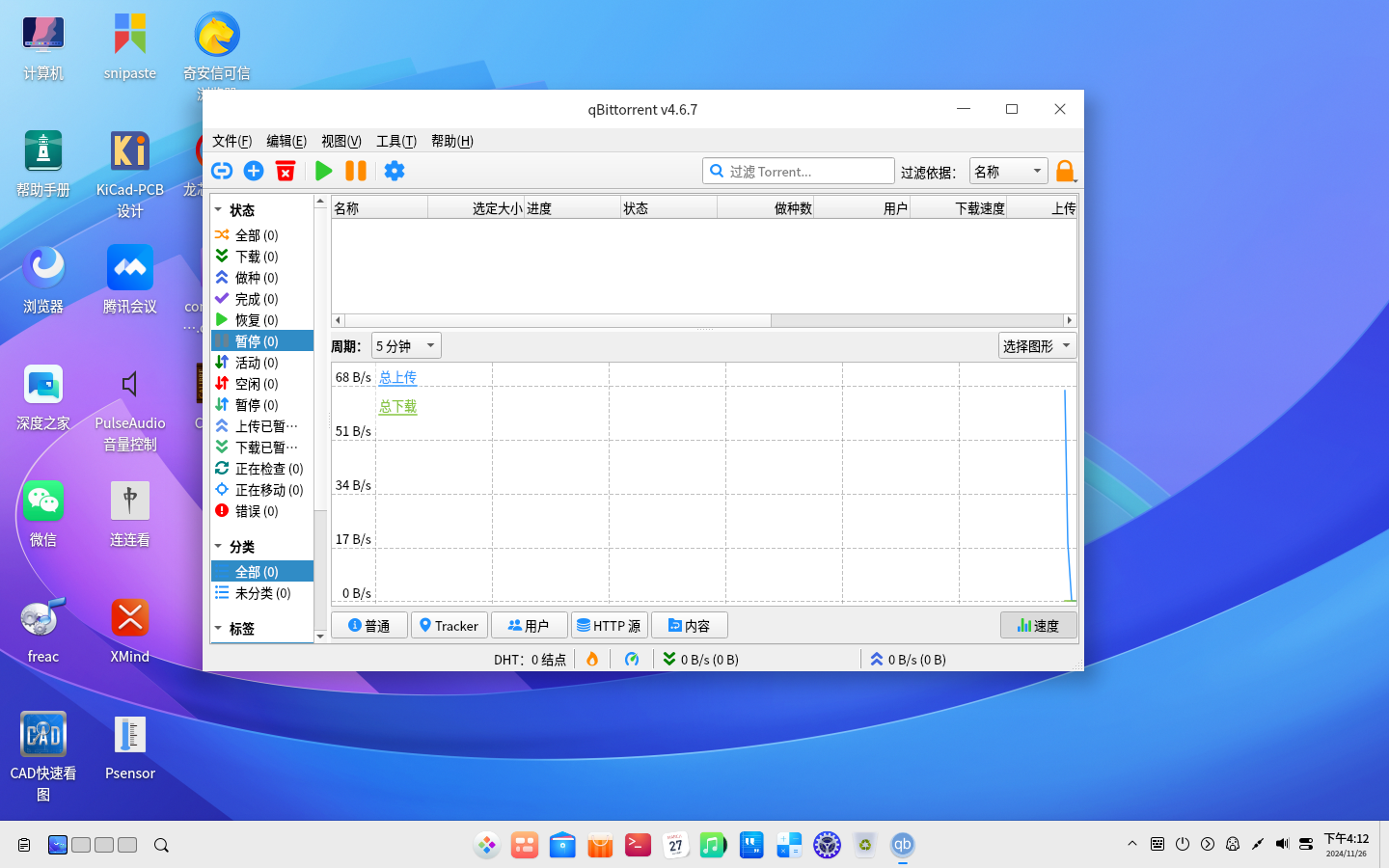

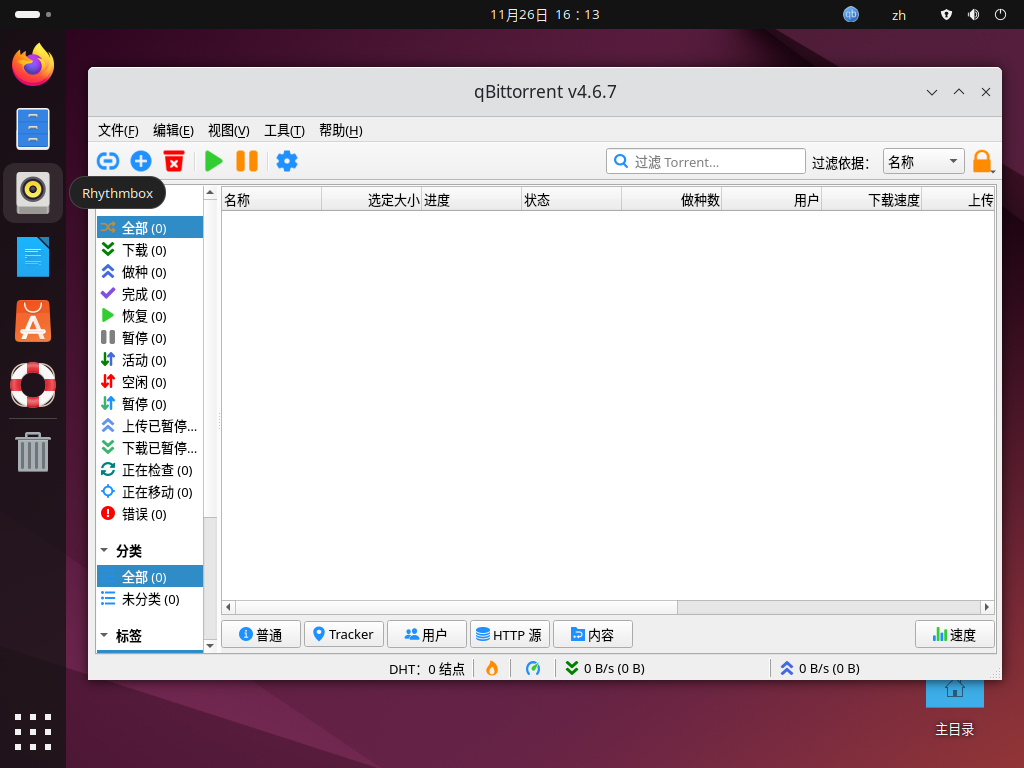

After obtaining the Linyaps application installation package, I tried to experience it on different mainstream distributions that support the Linyaps environment to confirm whether the binary programs built through Linyaps containers have universality.

deepin 23

openKylin 2.0

Ubuntu 2404

OpenEuler 2403

So far, it is sufficient to prove that Qt5-based open source application--qBittorrent can achieve one-stop pulling of project source code and compilation into executable binary files after adding custom patches and modifying build rules, and can also be used on other distributions!
